Paper Cup Machine

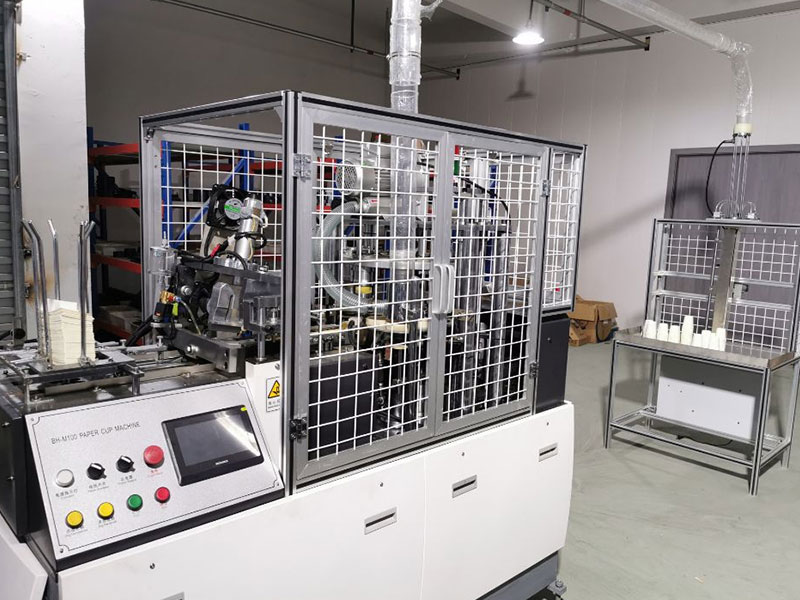

New high speed double paper cup forming machine is a fully automatic paper cup forming machine, which can automatically feed paper through multiple rows, paper anti-backing device (to ensure accurate positioning), ultrasonic welding, transfer of mechanical paper tube, bottoming, folding bottom, Pre-heating, knurling, unloading and other continuous processes can stably produce paper cups of various specifications.

Inquire Now +

Description1 Description1

Model	YG-800	YG-C800	YG-S800
Paper Cup Size	2-9OZ	2-16OZ	2-16OZ
Raw Material	One-side or two-side PE coated paper

Speed	80-100 pcs/min	70-90 pcs/min	100-120 pcs/min
Suitable paper weight	160-350g;±20g	160-350g;±20g	160-350g;±20g
Voltage supply	380V, 50HZ	380V, 50HZ	380V, 50HZ
General power	7.8 kw	5.5 kw	7kw
Working Air Source	NO	NO	0.6-0.8mpa; 0.4m³/min
Net weight	1680kg	1680kg	2000kg
Measurement (LWH)	211510001700mm	211510001700mm	Main engine	218010501600mm
			Cup holder	9006001800mm
Cup Side Sealing	Copper bar heating	Evergreen Ultrasonic	Evergreen Ultrasonic
Bottom Knurling	Heating	Heating	Hot Air System
We can customize machine and mold according to customer’s requirement.
